Making 3 Coil Using BLDC Motor



    BLDC motor works on the principle similar to that of a conventional DC motor, the Lorentz force law which states that whenever a current carrying conductor placed in a magnetic field it experiences a force. As a consequence of reaction force, the magnet will experience an equal and opposite force.

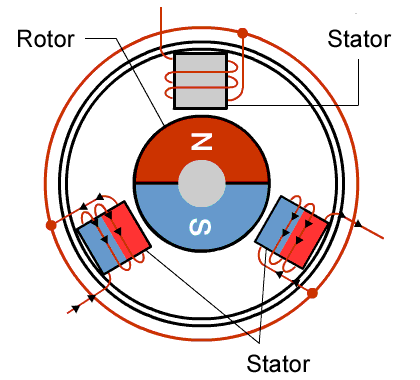

    A brushed DC motor has permanent magnets on the inside of its structure, with a spinning armature on the inside. In brushless DC motors, the permanent magnets are on the rotor, and the electromagnets are on the stator. A computer then charges the electromagnets in the stator to rotate the rotor a full 360-degrees.

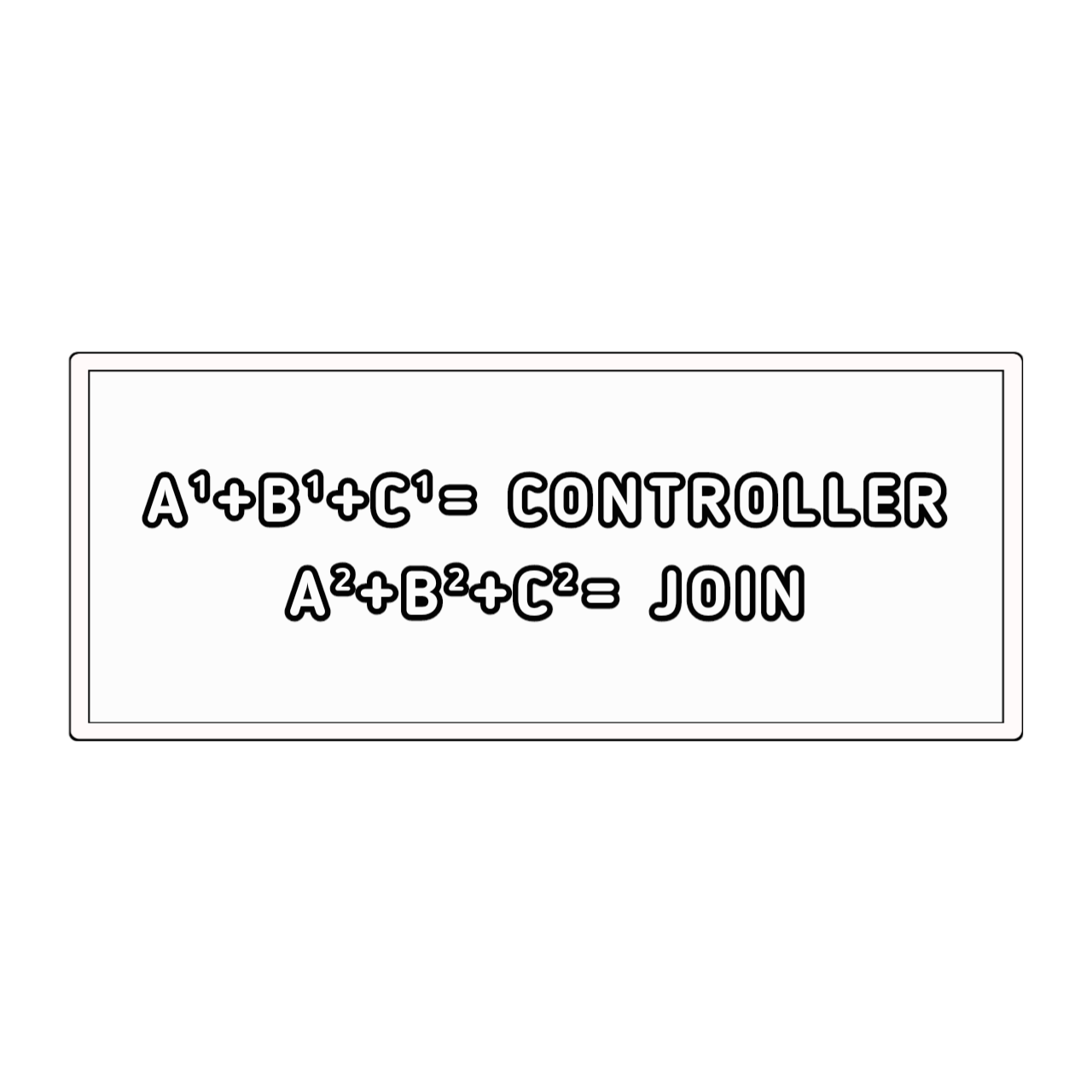

CONNECTIONS





Components:

1. Copper wire

2. Ball bearing (5mm) - 2pcs

3. Shaft (5mm× 75mm) -1pcs

4. Neodymium magnets - 4pcs

YOUTUBE VIDEO LINK:



3D PRINTER PART 'stl' FILE

https://www.thingiverse.com/thing:4866578

Components Link :

1. Bearing (5mm) https://amzn.to/3v9KLrW

2. Copper Wire (.91mm) https://amzn.to/3nNSUib 3. shaft (5mm) https://amzn.to/3fHuFAQ 4.Neodymium magnet https://bit.ly/3w3GOoH

CONTACT US,

Email: rameshmanivmr@gmail.com

Instagram:https://www.instagram.com/Creativethinkgr/

Facebook:https://m.facebook.com/creativethinkgr/?ref=bookmarks

Youtube:https://youtube.com/channel/UCFIvBqiuewh8L41QLTn0rcQ
