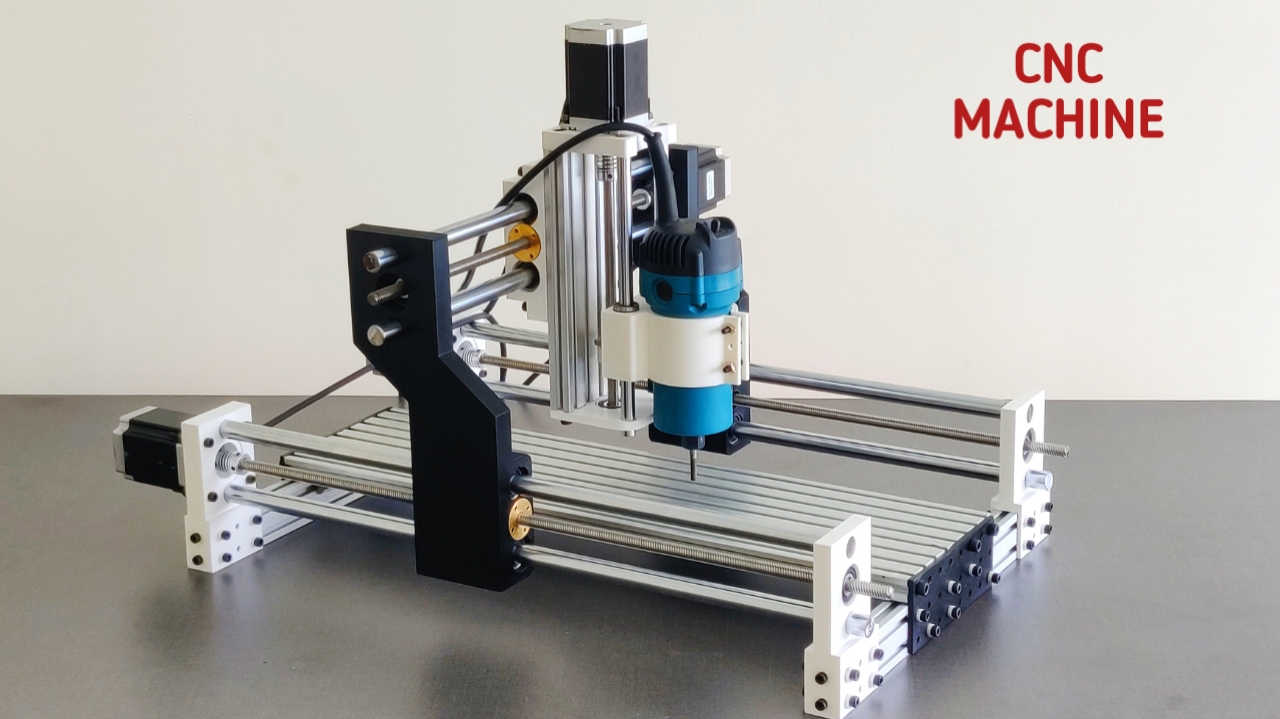

Making CNC Machine || 3 Axis Milling Machine || CNC Engraving Machine






The principles of CNC operation.

Movement of X, Y, Z axis are controlled by a motor which supplies either Alternating current or Direct current. Movement of the machine is done by giving commands. All the operations are carried out by codes like speed, feed, depth of cut, etc

 working Area= 600mm x 400mm

Circuit Diagram:




3d printed Files

https://www.thingiverse.com/thing:4862973/files

youtube Video link

https://youtu.be/Hb6WJTX5X_E

Detail, 1.16mm shaft 400mm=2pcs 600mm=4pcs 2. linear bearing (16mm)=12pcs 3.12mm shaft(200mm=2pcs) 4.linear bearing (12mm)=4pcs 5.nema 23 stepper motor= 4pcs 6. 8mm to 10mm shaft coupler=4pcs 7. Lead Screw 400mm =1PCS 600mm =2pcs 200mm =1pcs 8.palm router=1 9.2040 Aluminum Profile(400mm)=2pcs 10. 2080 Aluminum Profile(600mm)=2pcs 200mm=1pcs 11. Lead screw nut (10mm)=4pcs 12. bearing (10mm)=4pcs


link:
Components Link : 1. 2040 Aluminum Profile https://amzn.to/3ubzIh0 2. 2080 Aluminum Profile https://bit.ly/2Rax50u 3. shaft (16MM) https://amzn.to/3o8Qcoe 4. LINEAR BEARING (16mm) https://amzn.to/3vZYkK7 5. Bolt Nut (m5) https://amzn.to/3gTSMNk 6. Palm Router https://amzn.to/3eJCJyD 7. Leadscrew (10mm) https://amzn.to/3xFj6jR 8. Stepper Motor And Driver https://amzn.to/3364pbC 9. shaft Couple (8mm to 10mm) https://amzn.to/3t8kXKS 10. Bearing (10mm) https://amzn.to/3eJeWio 11. Shaft (12MM) https://amzn.to/3nEwujR 12. linear Bearing (12mm) https://amzn.to/3vtdur2 13. cnc shield https://amzn.to/3gUq274 14. SMPS(24V, 10A) https://amzn.to/3vyYCHT 15. Palm Router https://amzn.to/3eJCJyD
